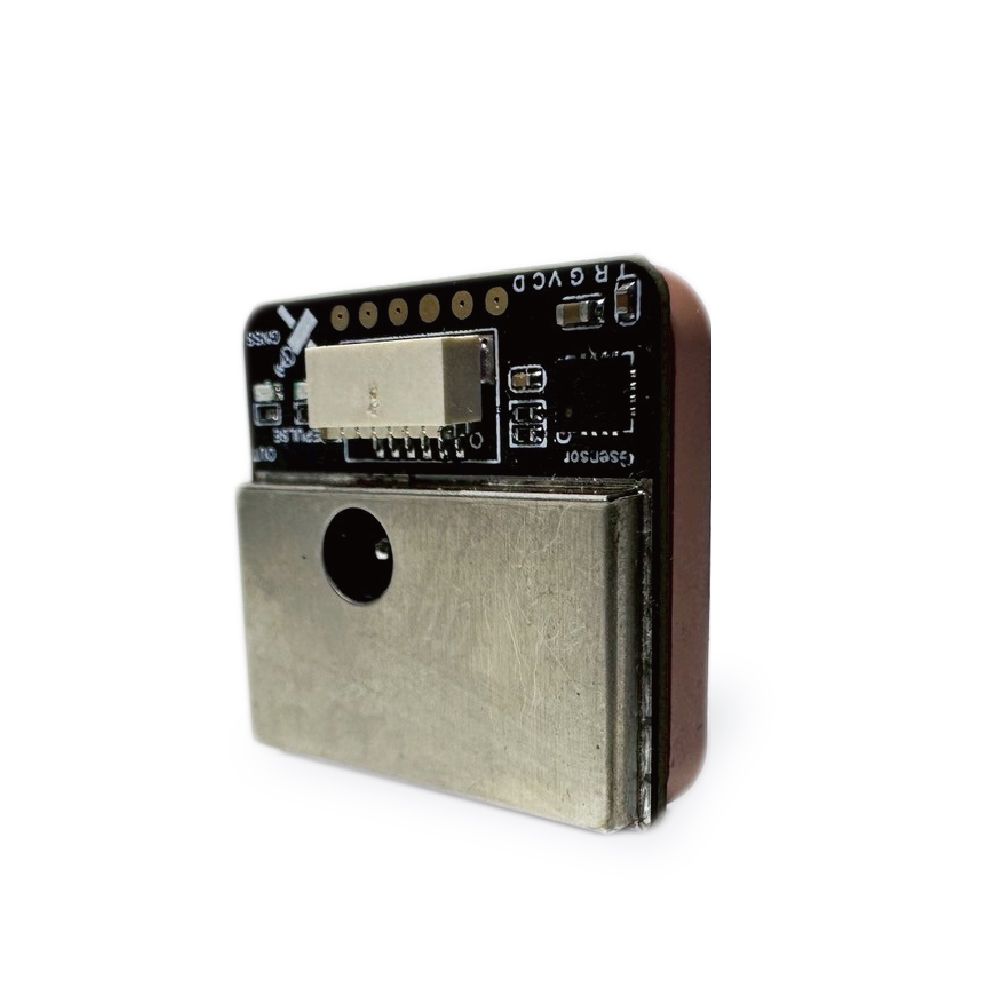

The ZST-GPSM10 is a compact, high-precision GPS and Compass Module, entirely made in Taiwan, featuring the M10 chip to deliver fast and stable navigation for UAVs with accurate positioning and directional correction, even in challenging environments. Key Specs: Chip: M10 (10th Generation Chip) GNSS Compatibility: GPS L1, GLONASS L1, BDS B1, GALILEO ESBAS L1, QZSS L1 Channels: 72 Output Frequency: 1Hz-10Hz, 10Hz default Horizontal Positioning Accuracy: 1.5m (2D ACC outdoor) Speed Accuracy: 0.05 m/s Compass: QMC5883 Input Voltage: 5V Baud Rate: 115200bps Protocol: Dual NMEA/UBLOX Dynamic Characteristics: Height: 50,000m Speed: 500m/s Acceleration: 4G Operating Temperature: −40∘C to +85∘C Weight: 12g Size: 25×25×8 mm

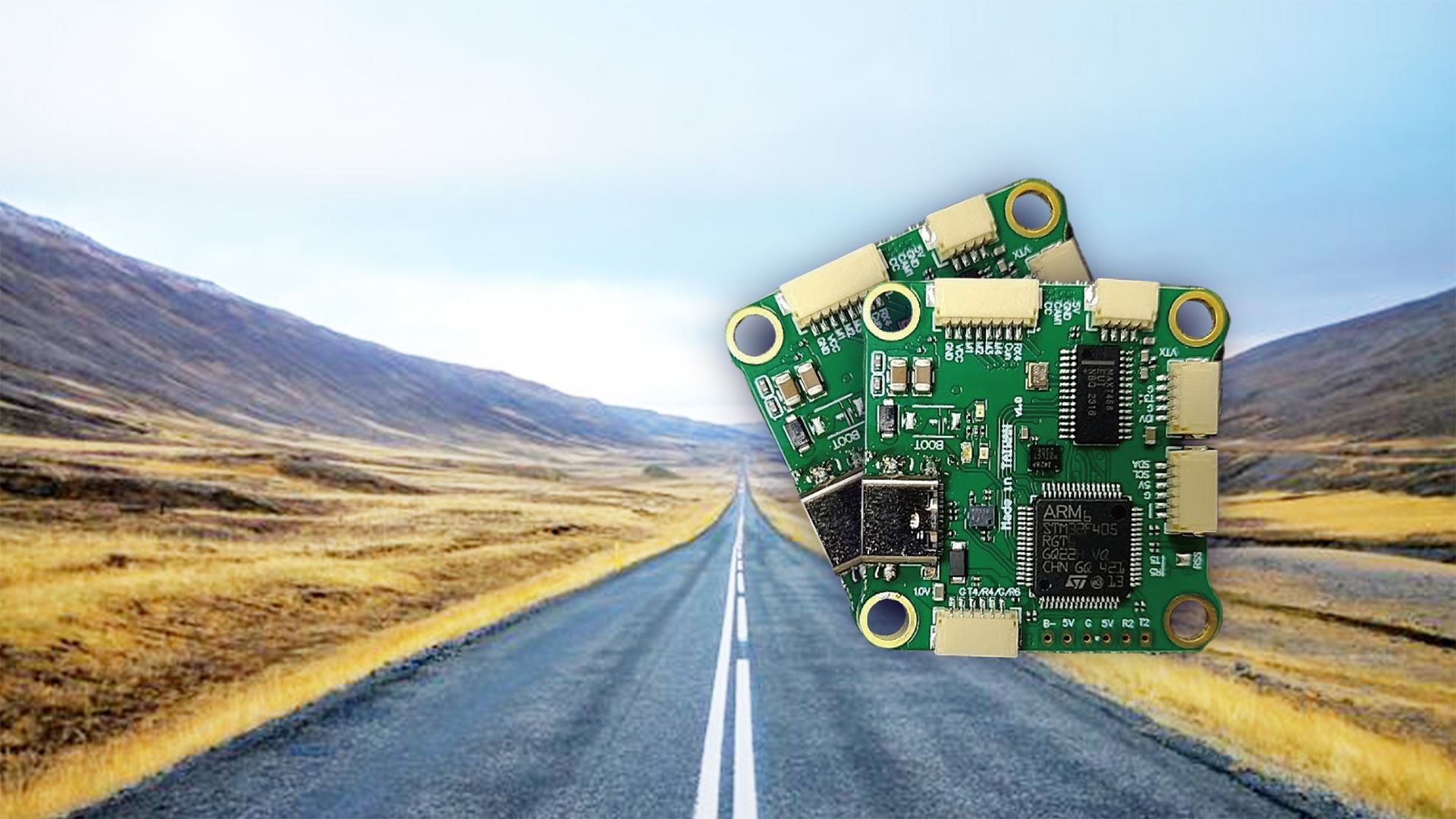

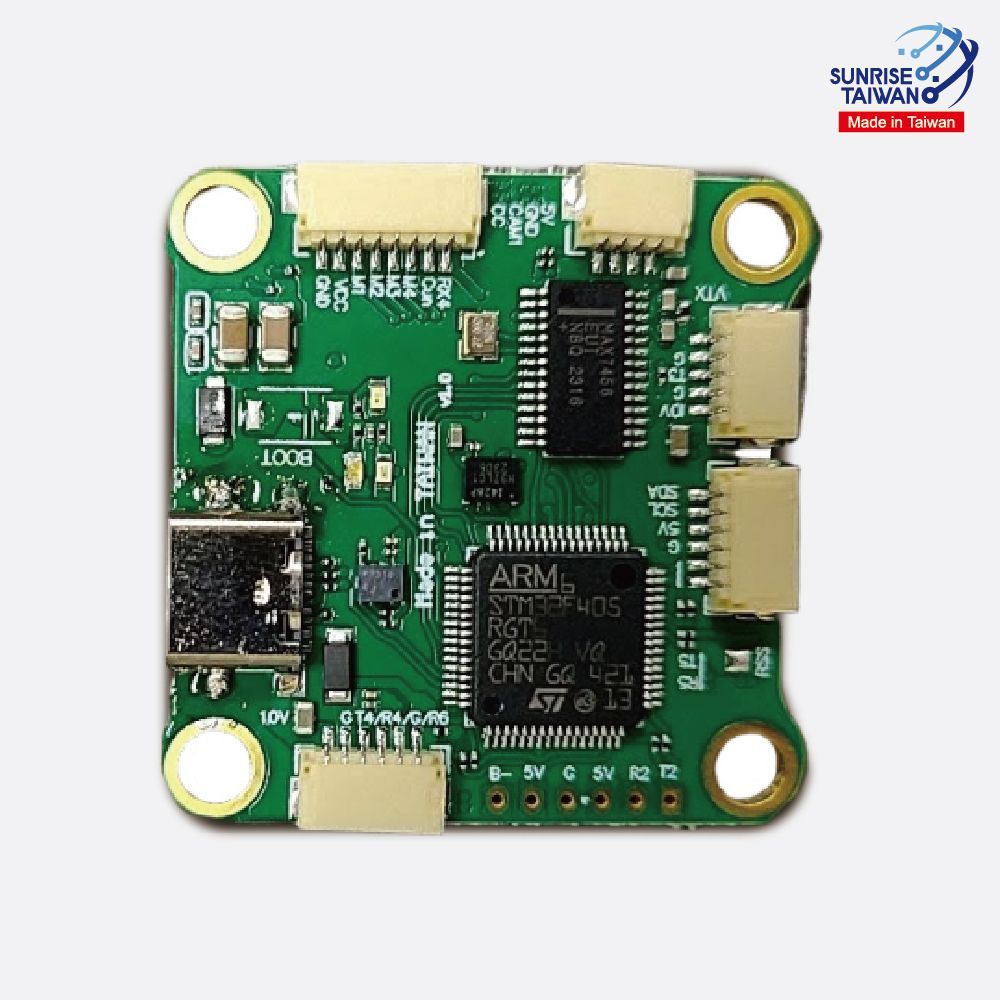

Designed for professional drone developers, the ZST-F405-01 combines performance, flexibility, and trust. Featuring an STM32F405RGT6 MCU and rich peripheral support, it offers seamless integration for open-source flight stacks like Betaflight and Ardupilot. Key Specs: STM32F405RGT6 CPU Supports 4~8S LiPo input Built-in BEC: 5V/3A or 10V/3A outputs 16MB Flash Memory 5x UART, 1x PWM outputs Receiver protocols supported: SBUS, PPM, DSM, CRSF, IBUS Compatible with Betaflight / Ardupilot
